  • 24V gear pump for motor oil

4 GPM (15 LPM) HD Gear Pump 24V for Motor Oil or Diesel Fuel Transfer

$497.34
SKU:
GP-612-24L
Weight:
9.50 LBS
Availability:
Usually ships in 24 hours
Shipping:
Free Shipping
Minimum Purchase:
1 unit(s)
Quantity:

Product Description

Model GP-612-24L is a self-priming, compact, powerful, 24 VDC electric gear pump. Constructed with helical bronze gears, nickel-plated brass body and stainless steel shafts.

Viton seals.

*VITON chemical compatability chart can be found here:



http://www.fbs-online.com/Centre/Prod/Viton-chem-com-res.htm



Suitable for Motor oil, Diesel fuel, Antifreeze and Water transfer. Ports: Tapped 1/2" BSP, pump supplied with 2 ea 1/2" NPT adaptors

Motor:24VDC, powdered epoxy coated
IP67 Protection
EN 55014-1 Electromagnetic emmission compatibility
ISO 8846 Compliant Device
Circuit Protection: Install fuse 24V - 7.5A

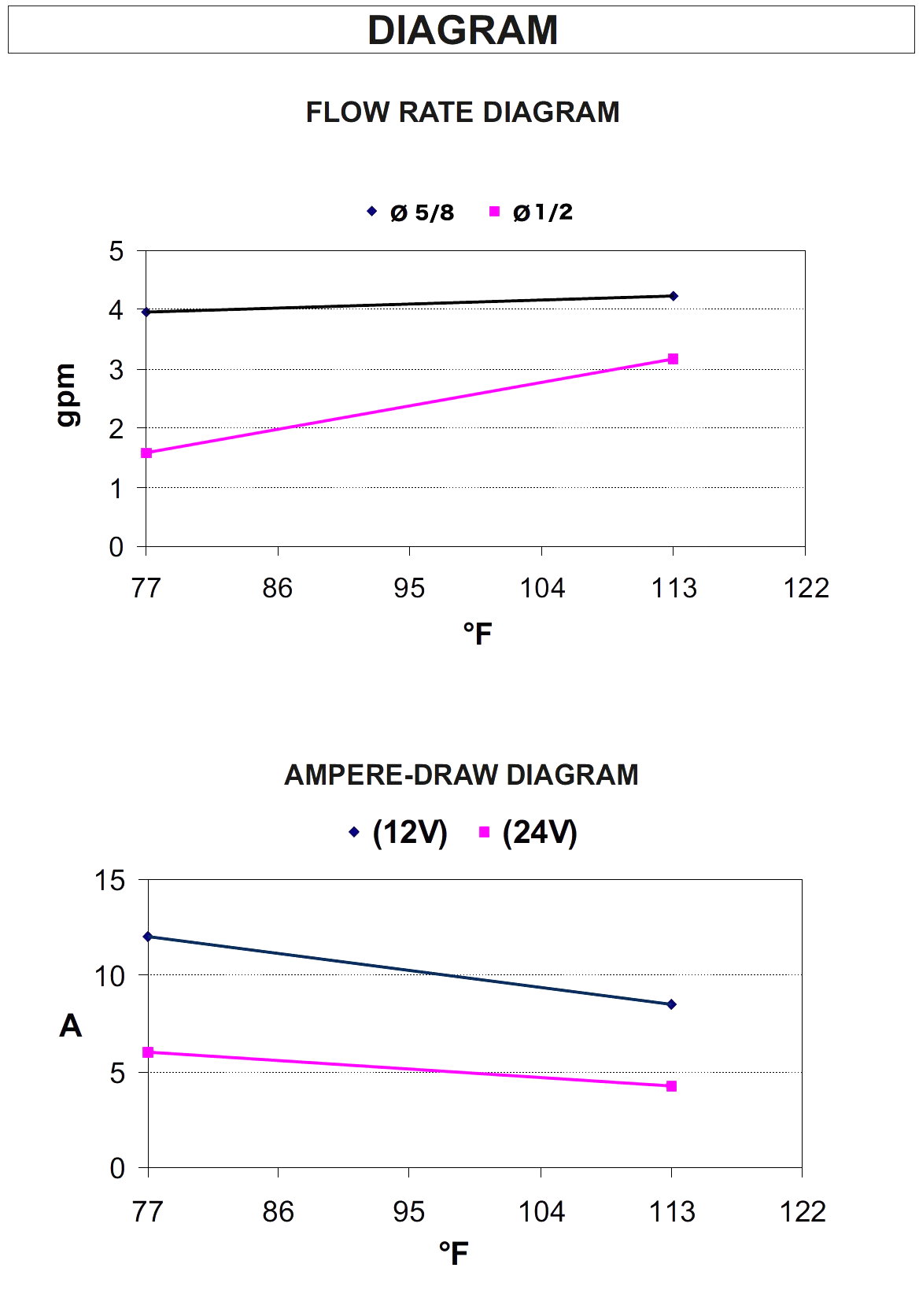

Current: See Graphs Below
Flow Rate: 4 GPM
Self Priming With Wet Gears: 13 ft (4 m)
Working pressure: 36psi
Run dry time, up-to 30 min
Motor Life: Approx. 2000 hours
Pump Body: Nickel plated Bronze
Gears:Bronze
Shafts: Stainless Steel
DO NOT USE for gasoline, flammable liquids liquids, food products, corrosive chemicals & solvents.
Weight: 9.5 lbs

Warranty Information



* The warranty period is 2 years from the date of purchase on the invoice.
The warranty covers only production defects
It does not cover altered, abused, or improperly installed pumps.
The warranty does not cover any installation expenses involved.
